SCARA Tic-Tac-Toe robot

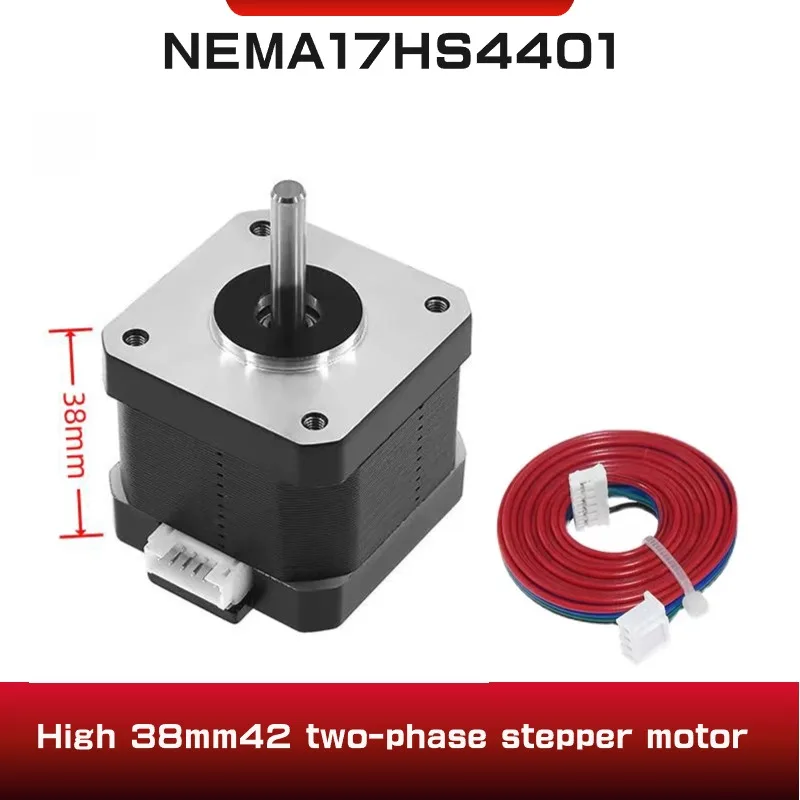

NEMA 17 Stepper Motor.

Arduino IDE

Arduino Mega 2560 Rev3

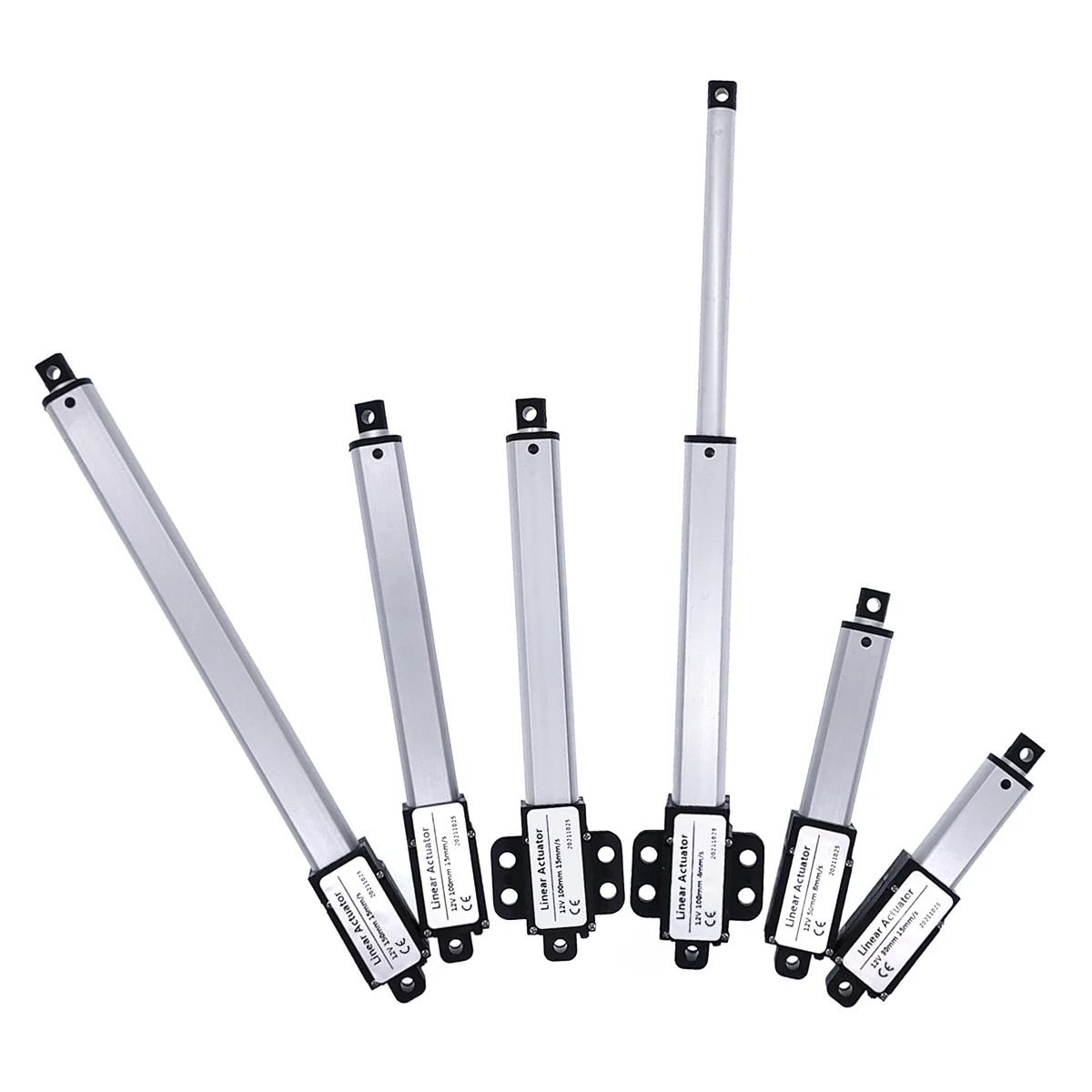

Linear Actuator 30mm stroke

A4988 Shield

5V Relay Module.

L298N H-Bridge

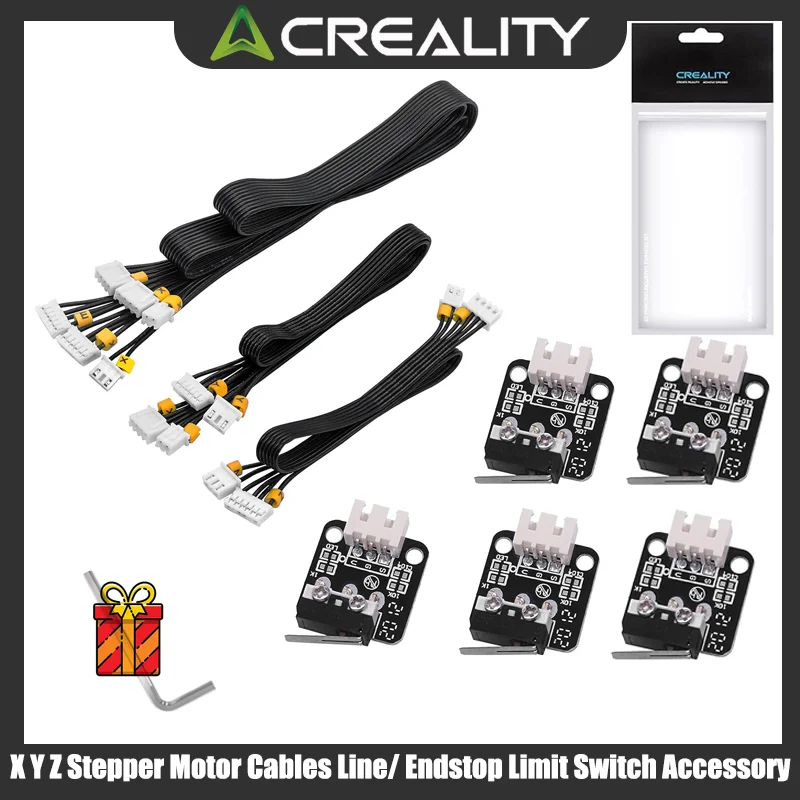

Limit Switch

A4988 Motor Driver

Micro Push Button

LCD Display I2C Interface

12V to 5V Step-down Module

Vacuum Gripper system

KC-2004-BB Character LCD Display

DC 12V 3A Power Supply

HALL-49E Sensor

<html><body>I developed a parallel SCARA robot that automatically plays 4×4 Tic-Tac-Toe with physical discs against a human opponent. The human's discs contain neodymium magnets, detected by Hall sensors mounted under the board – this is responsible for tracking the human's moves. The robot picks discs from a dispenser using a vacuum gripper and places them on the board. The entire control system runs on an Arduino Mega 2560, implemented as a finite state machine. <figure><img src="https://projects.arduinocontent.cc/03e5e36b-1522-408b-8402-83bfe4913fc0.jpg"/><figcaption></figcaption></figure> <figure><img src="https://projects.arduinocontent.cc/25a21b52-dff6-4517-9aad-5a5ab1a62f33.jpg"/><figcaption></figcaption></figure> The system includes a menu-driven user console with 4 function buttons, handling difficulty selection, game start, and the selection of the starting player. There are two difficulty modes: the easier one moves randomly, while on hard mode the robot deliberately analyses the board, blocks the opponent, and searches for the winning move. In this mode, it becomes unbeatable. The algorithm could be further developed in the future – for example using minimax with alpha-beta pruning – where the robot simulates every possible future move and always selects the mathematically optimal one. This would make it theoretically perfectly unbeatable. <figure><img src="https://projects.arduinocontent.cc/f53f9515-5b9e-4e3b-bb93-97fc4d68dc7c.jpg"/><figcaption></figcaption></figure> <figure><img src="https://projects.arduinocontent.cc/20ae1838-0d4a-408e-a89d-079e429363a9.jpg"/><figcaption></figcaption></figure> <figure><img src="https://projects.arduinocontent.cc/2e380ffe-fe93-48a8-88f3-8a1c0aaf8d57.jpg"/><figcaption></figcaption></figure> 💻 GitHub: https://lnkd.in/dnHhCDXk📋 The full list of electronic components used in the project is available here: https://lnkd.in/dzYkmd_Q</body></html>

GitHub Repo

SCARA-TicTacToe_Inventor_files

SCARA Tic-Tac-Toe robot

Automated parallel SCARA robot for playing physical 4x4 Tic-Tac-Toe against human opponent.
