Devices & Components
L298 driver for DC/Stepper motors

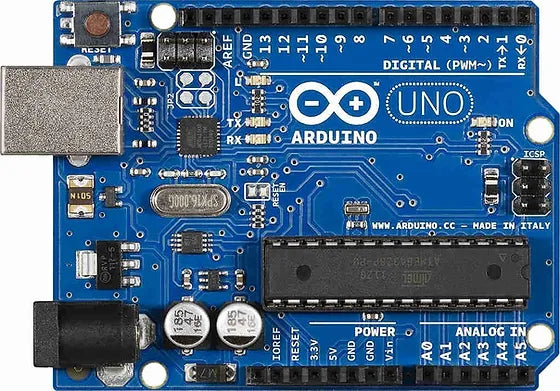

Arduino uno r3

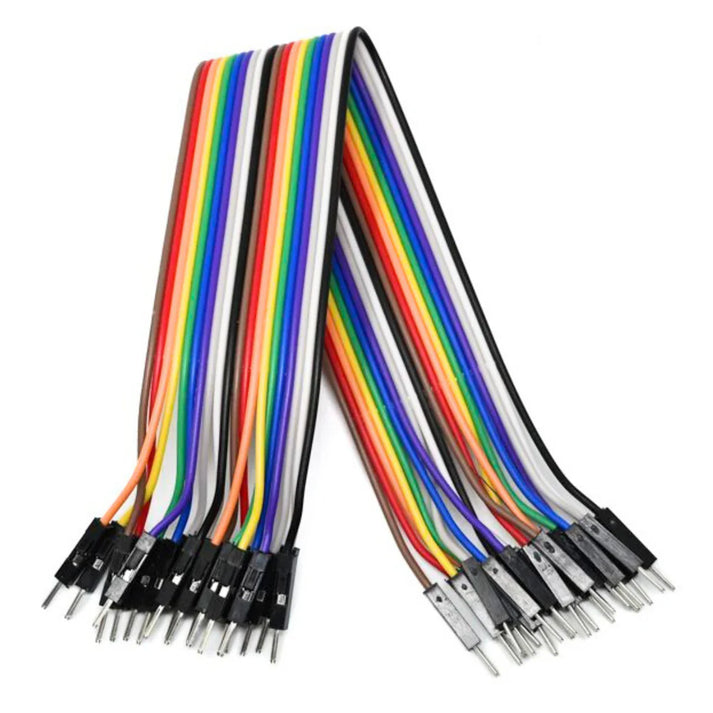

JUMPER WIRE Male-Male (M-M)
3 Cell Holder

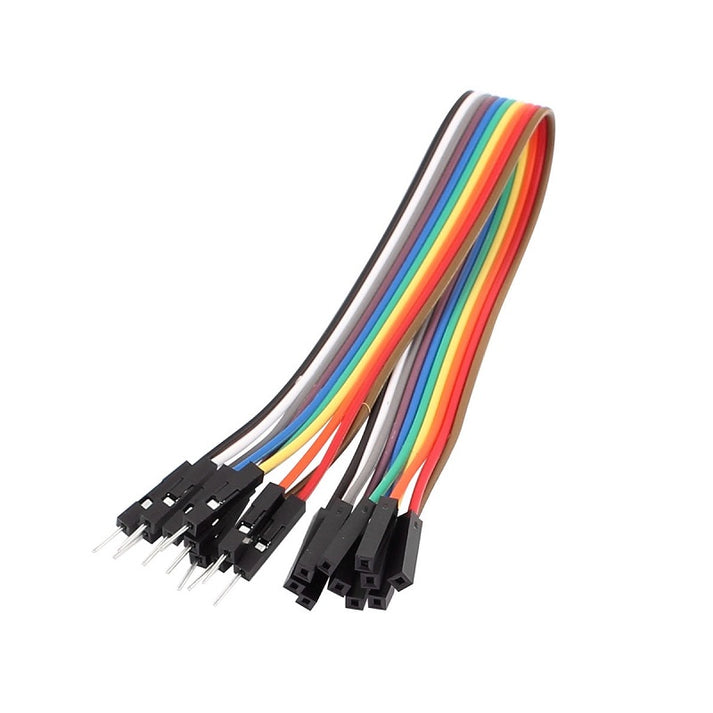

JUMPER WIRE Male-Female (M-F) 20CM

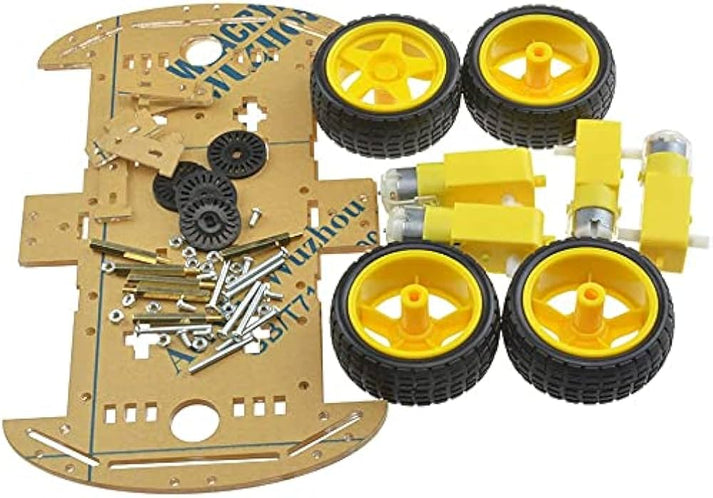

4 Wheel Kit

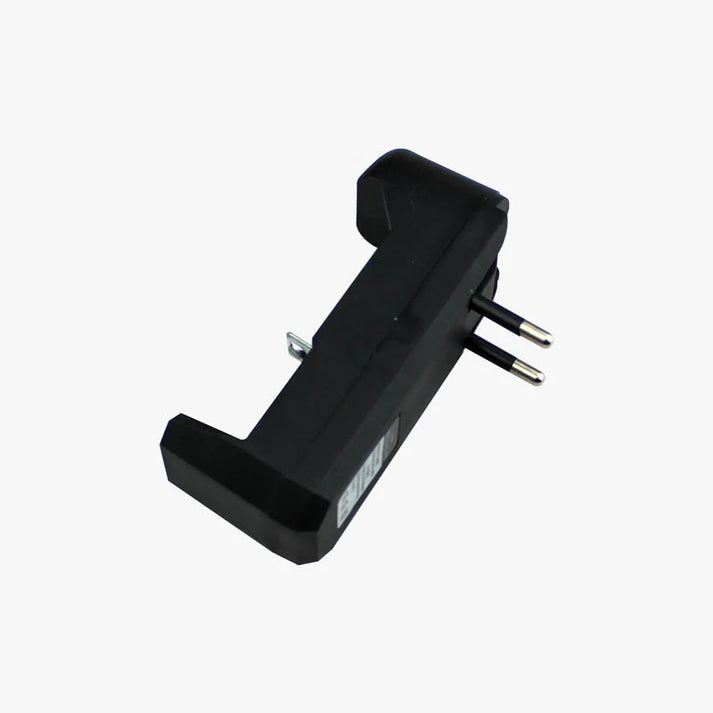

Battery Charger (Without Wire)

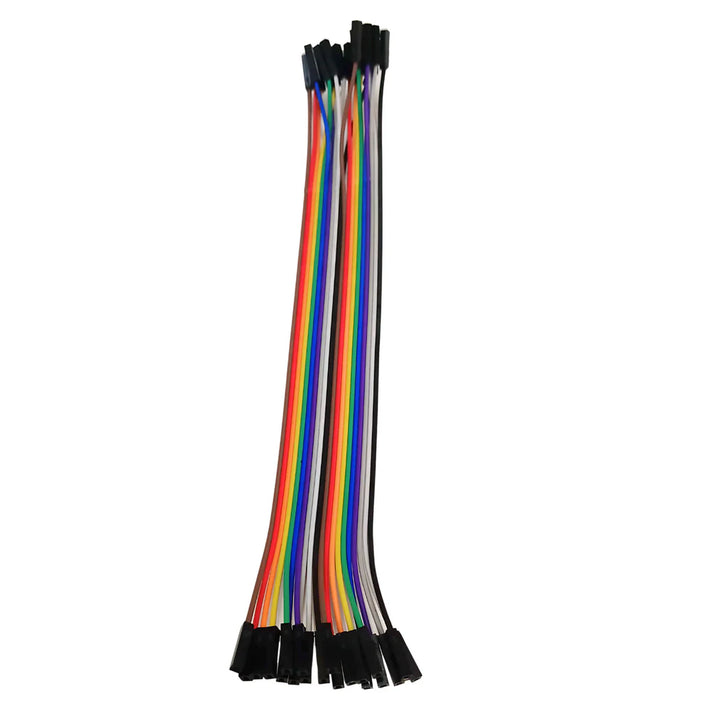

JUMPER WIRE Female-Female (F-F) 20CM

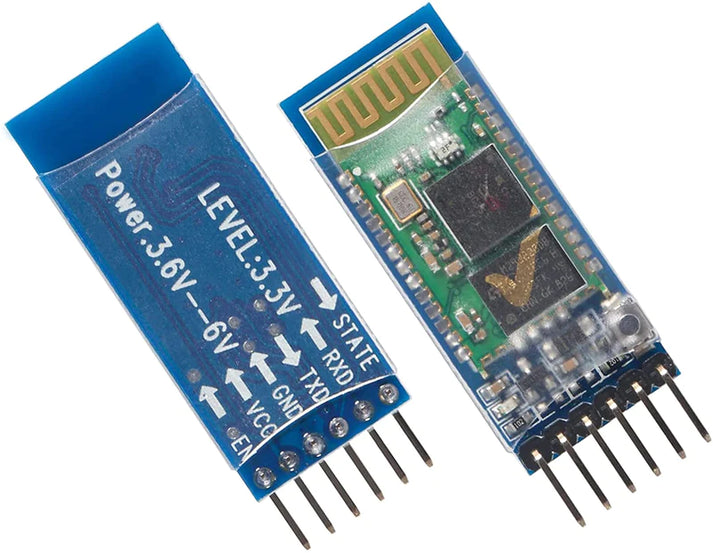

HC05 Bluetooth module

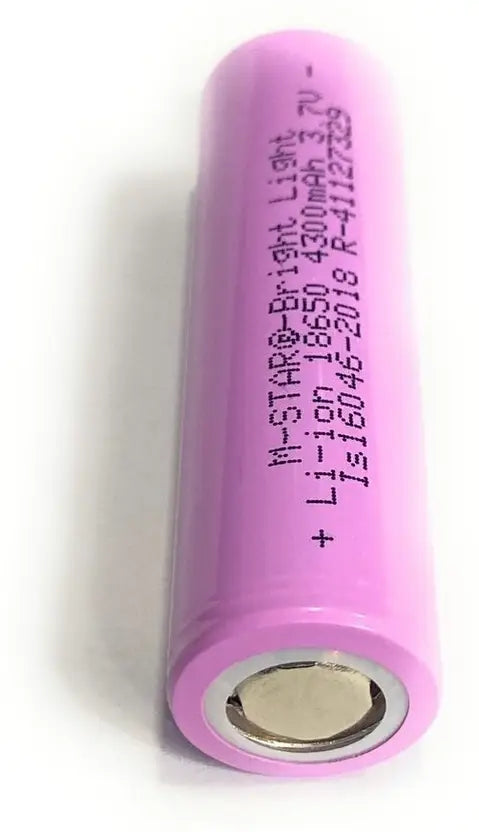

3.7V Lithium Ion Battery - 4300mAh

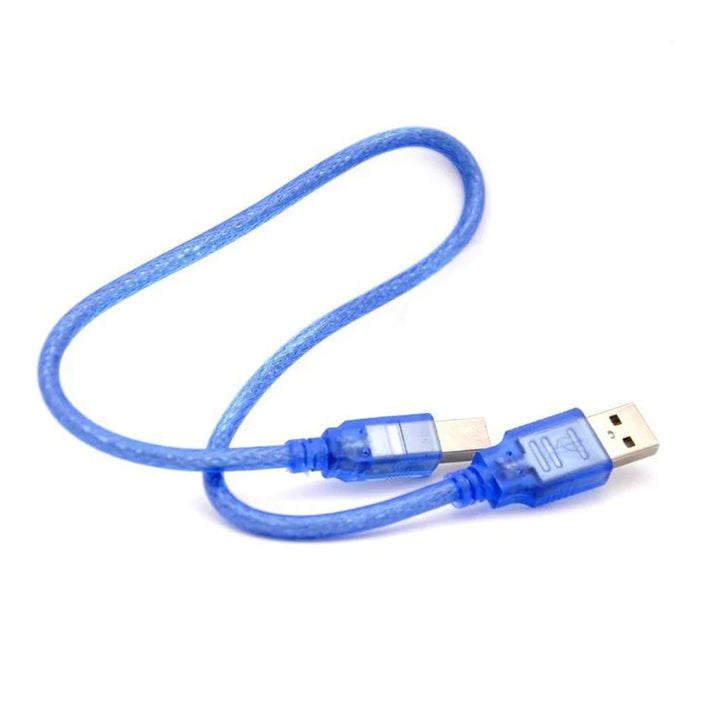

Arduino UNO Cable
Hardware & Tools

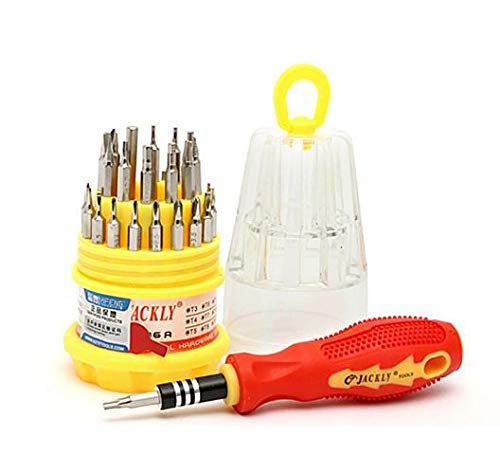

Magnetic Screw Driver Kit

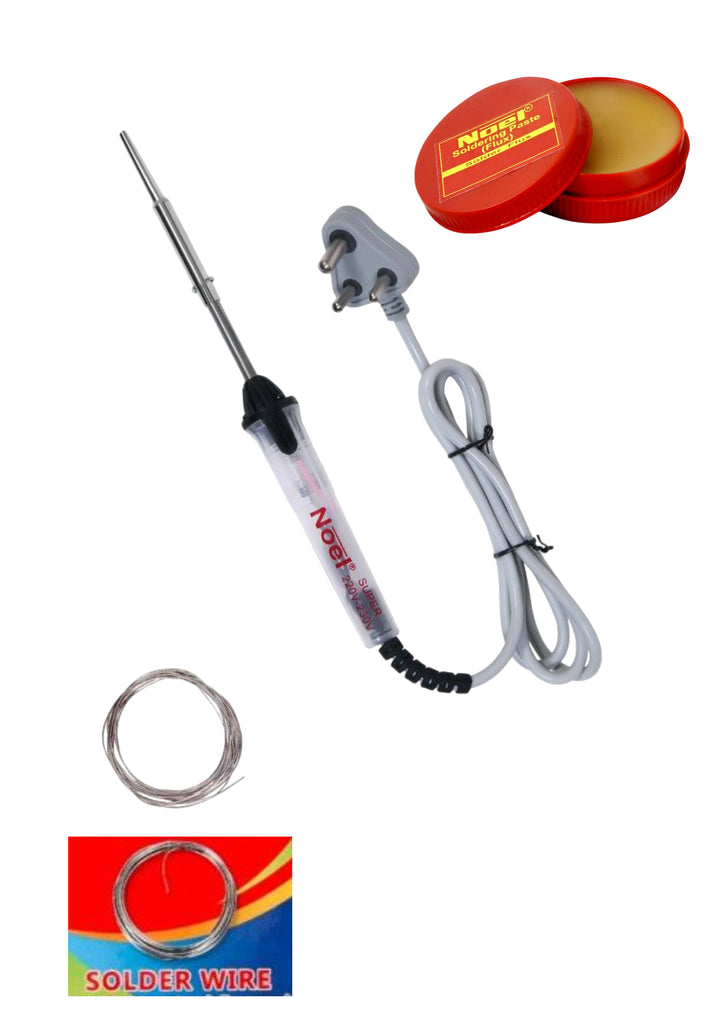

Soldering Iron with Solder Wire and Flux Paste
Software & Tools
Arduino IDE
Project description
Code
4WD_CAR
1char t; 2 3void setup() { 4pinMode(13,OUTPUT); //left motors forward 5pinMode(12,OUTPUT); //left motors reverse 6pinMode(11,OUTPUT); //right motors forward 7pinMode(10,OUTPUT); //right motors reverse 8pinMode(9,OUTPUT); //Led 9Serial.begin(9600); 10 11} 12 13void loop() { 14if(Serial.available()){ 15 t = Serial.read(); 16 Serial.println(t); 17} 18 19if(t == 'F'){ //move forward(all motors rotate in forward direction) 20 digitalWrite(13,HIGH); 21 digitalWrite(11,HIGH); 22} 23 24else if(t == 'B'){ //move reverse (all motors rotate in reverse direction) 25 digitalWrite(12,HIGH); 26 digitalWrite(10,HIGH); 27} 28 29else if(t == 'L'){ //turn right (left side motors rotate in forward direction, right side motors doesn't rotate) 30 digitalWrite(11,HIGH); 31} 32 33else if(t == 'R'){ //turn left (right side motors rotate in forward direction, left side motors doesn't rotate) 34 digitalWrite(13,HIGH); 35} 36 37else if(t == 'W'){ //turn led on or off) 38 digitalWrite(9,HIGH); 39} 40else if(t == 'w'){ 41 digitalWrite(9,LOW); 42} 43 44else if(t == 'S'){ //STOP (all motors stop) 45 digitalWrite(13,LOW); 46 digitalWrite(12,LOW); 47 digitalWrite(11,LOW); 48 digitalWrite(10,LOW); 49} 50delay(100); 51}
Downloadable files
4WD_CAR
4WD_CAR.ino
4WD CAR WIRING DIAGRAM
4WD CAR.jpg
