Autonomous Mouse Droid With Party Mode

This is a self-driving, screaming, partying mouse droid.

Aug 14, 2026

•

66 views

•

0 respects

•

CC BY-NC 4+

Robots

Toys

Devices & Components

Arduino Uno Rev3

Red 5mm LEDs

7.4V Lithium Ion Battery

8 Ohm Speaker

470ohm resistor

5x2 mm magnets

M3 25 mm Hex Carbon Steel Standoffs

1000 ohm resistor

Black PETG

Aluminum Chassis

Swivel Ball Caster

6x6x6 Momentary Button Switch

5V Buck Converter

KCD1 Rocker Switch

8GB MicroSD card

HC-SR04 US Sensor

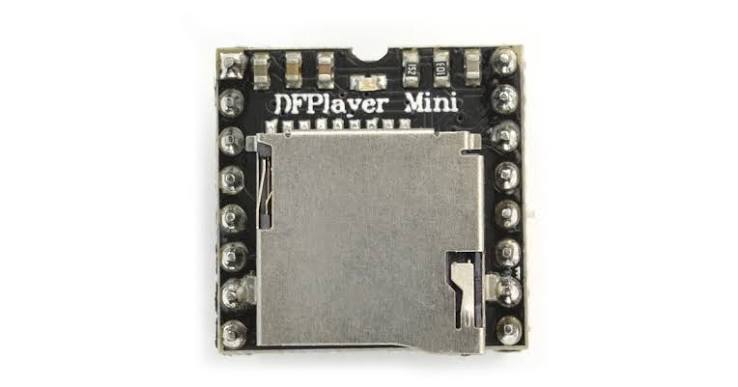

DFRobot DFPlayer Mini

M3 nuts and bolts (various sizes)

TT Motors + Rubber Wheels

L298N Motor DC Dual H-Bridge Motor Driver Controller

Hardware & Tools

3D printer (any brand)

Precision Screwdriver

Soldering iron (+ solder)

Software & Tools

Arduino IDE

Project description

Code

Party-Mouse-Droid

cpp

1/*
2Autonomous Party Mouse Droid
3
4 Copyright (c) 2026 Chaos Theory
5 youtube.com/@heychaostheory
6
7 This project is an unofficial, non-commercial Star Wars fan project.
8 Star Wars, Mouse Droid, Sabine Wren, and related intellectual property belong to
9 their respective rights holders. This project is not affiliated with
10 or endorsed by Lucasfilm Ltd., The Walt Disney Company, or any other
11 Star Wars rights holder.
12
13 The original source code in this file is licensed under the MIT License.
14 See the LICENSE-MIT.txt file for the full license text. */
15
16#include <SoftwareSerial.h>
17#include <DFRobotDFPlayerMini.h>
18
19const byte ECHO_PIN = 2;
20const byte TRIG_PIN = 3;
21
22const byte BUTTON_PIN = 4;
23
24const byte MOTOR_LEFT_ENABLE_PIN = 5;
25const byte MOTOR_LEFT_IN1_PIN = 6;
26const byte MOTOR_LEFT_IN2_PIN = 7;
27
28const byte MOTOR_RIGHT_IN1_PIN = 8;
29const byte MOTOR_RIGHT_IN2_PIN = 9;
30const byte MOTOR_RIGHT_ENABLE_PIN = 10;
31
32const byte DFPLAYER_TX_PIN = 11;
33const byte DFPLAYER_RX_PIN = 12;
34
35const byte LED_PINS[] = {
36  A0,
37  A1,
38  A2,
39  A3
40};
41
42const byte LED_COUNT =
43  sizeof(LED_PINS) / sizeof(LED_PINS[0]);
44const byte DRIVE_SPEED = 180;
45const byte TURN_SPEED = 200;
46const byte BACKUP_SPEED = 180;
47
48// obstacle avoidance distance
49const unsigned int WALL_DISTANCE_CM = 40;
50
51// turning clearance
52const unsigned int AVOID_SAFE_DISTANCE_CM = 50;
53
54// scream mode activation maximum distance
55const unsigned int SCREAM_DISTANCE_CM = 25;
56
57const unsigned long ULTRASONIC_INTERVAL_MS = 60;
58const unsigned long ULTRASONIC_TIMEOUT_US = 25000UL;
59
60const byte DISTANCE_SAMPLE_COUNT = 5;
61const unsigned long BUTTON_DEBOUNCE_MS = 30;
62
63const unsigned long AVOID_STOP_DURATION_MS = 120;
64const unsigned long AVOID_BACKUP_DURATION_MS = 550;
65
66const unsigned long AVOID_TURN_CHUNK_MS = 500;
67
68const unsigned long AVOID_LOOK_DELAY_MS = 120;
69
70const byte AVOID_MAX_TURN_CHUNKS = 6;
71
72const unsigned long RANDOM_PAUSE_MIN_INTERVAL_MS = 3500;
73const unsigned long RANDOM_PAUSE_MAX_INTERVAL_MS = 7500;
74
75const unsigned long RANDOM_PAUSE_MIN_DURATION_MS = 250;
76const unsigned long RANDOM_PAUSE_MAX_DURATION_MS = 650;
77
78const unsigned long PERSONALITY_WIGGLE_MIN_INTERVAL_MS = 2500;
79const unsigned long PERSONALITY_WIGGLE_MAX_INTERVAL_MS = 5500;
80const unsigned long PERSONALITY_WIGGLE_DURATION_MS = 140;
81
82const unsigned long SCREAM_PAUSE_MS = 150;
83
84const unsigned long SCREAM_BACKUP_DURATION_MS = 5000;
85
86const unsigned long SCREAM_TURN_DURATION_MS = 0;
87
88const unsigned long SURPRISE_COOLDOWN_MS = 2000;
89
90const unsigned long SCREAM_WIGGLE_INTERVAL_MS = 350;
91
92const byte SCREAM_WIGGLE_SPEED = 85;
93
94const unsigned long LED_BLINK_INTERVAL_MS = 1000;
95
96const byte PARTY_SPIN_SPEED = 255;
97
98// party mode duration in milliseconds
99const unsigned long PARTY_DURATION_MS = 20000;
100
101const byte TRACK_NORMAL = 1;
102const byte TRACK_SCREAM = 2;
103const byte TRACK_PARTY = 3;
104
105const byte DFPLAYER_VOLUME = 30;
106
107enum RobotState {
108  NORMAL,
109  SCREAM,
110  PARTY
111};
112
113enum AvoidanceStep {
114  AVOID_DRIVING,
115  AVOID_STOPPING,
116  AVOID_BACKING_UP,
117  AVOID_TURNING,
118  AVOID_LOOKING
119};
120
121enum NormalPauseState {
122  PAUSE_NOT_ACTIVE,
123  PAUSE_ACTIVE
124};
125
126RobotState robotState = NORMAL;
127
128AvoidanceStep avoidanceStep =
129  AVOID_DRIVING;
130
131NormalPauseState normalPauseState =
132  PAUSE_NOT_ACTIVE;
133
134SoftwareSerial dfPlayerSerial(
135  DFPLAYER_RX_PIN,
136  DFPLAYER_TX_PIN
137);
138
139DFRobotDFPlayerMini dfPlayer;
140
141bool dfPlayerReady = false;
142
143unsigned long stateStartedAt = 0;
144unsigned long avoidanceStepStartedAt = 0;
145unsigned long avoidanceLookStartedAt = 0;
146unsigned long surpriseIgnoreUntil = 0;
147unsigned long lastUltrasonicReadAt = 0;
148unsigned long lastLedChangeAt = 0;
149unsigned long nextRandomPauseAt = 0;
150unsigned long randomPauseStartedAt = 0;
151unsigned long randomPauseDuration = 0;
152unsigned long nextPersonalityWiggleAt = 0;
153unsigned long personalityWiggleEndsAt = 0;
154
155bool personalityWiggleActive = false;
156
157byte avoidanceTurnChunks = 0;
158
159bool turnLeftSelected = true;
160bool nextTurnLeft = true;
161
162unsigned long screamLastWiggleAt = 0;
163
164bool screamWiggleLeft = true;
165bool screamTurnInitialized = false;
166bool partyLedsAlternate = false;
167bool partyTrackFinished = false;
168
169unsigned int rawDistanceCm = 0;
170unsigned int distanceSamples[DISTANCE_SAMPLE_COUNT] = {
171  0
172};
173
174byte distanceSampleIndex = 0;
175byte distanceSampleTotal = 0;
176
177unsigned long distanceSampleSum = 0;
178unsigned int filteredDistanceCm = 0;
179unsigned int previousFilteredDistanceCm = 0;
180
181bool lastRawButtonState = HIGH;
182bool stableButtonState = HIGH;
183
184unsigned long rawButtonChangedAt = 0;
185
186enum AudioMode {
187  AUDIO_NONE,
188  AUDIO_LOOPING,
189  AUDIO_ONCE
190};
191
192AudioMode activeAudioMode = AUDIO_NONE;
193
194byte activeAudioTrack = 0;
195
196void setMotorDirection(
197  bool leftForward,
198  bool rightForward
199) {
200
201  digitalWrite(
202    MOTOR_LEFT_IN1_PIN,
203    leftForward ? HIGH : LOW
204  );
205
206  digitalWrite(
207    MOTOR_LEFT_IN2_PIN,
208    leftForward ? LOW : HIGH
209  );
210
211  digitalWrite(
212    MOTOR_RIGHT_IN1_PIN,
213    rightForward ? HIGH : LOW
214  );
215
216  digitalWrite(
217    MOTOR_RIGHT_IN2_PIN,
218    rightForward ? LOW : HIGH
219  );
220}
221
222void driveForward(byte speed) {
223
224  setMotorDirection(
225    true,
226    true
227  );
228
229  analogWrite(
230    MOTOR_LEFT_ENABLE_PIN,
231    speed
232  );
233
234  analogWrite(
235    MOTOR_RIGHT_ENABLE_PIN,
236    speed
237  );
238}
239
240void driveBackward(byte speed) {
241
242  setMotorDirection(
243    false,
244    false
245  );
246
247  analogWrite(
248    MOTOR_LEFT_ENABLE_PIN,
249    speed
250  );
251
252  analogWrite(
253    MOTOR_RIGHT_ENABLE_PIN,
254    speed
255  );
256}
257
258void turnLeft(byte speed) {
259
260  digitalWrite(
261    MOTOR_LEFT_IN1_PIN,
262    LOW
263  );
264
265  digitalWrite(
266    MOTOR_LEFT_IN2_PIN,
267    LOW
268  );
269
270  analogWrite(
271    MOTOR_LEFT_ENABLE_PIN,
272    0
273  );
274
275  digitalWrite(
276    MOTOR_RIGHT_IN1_PIN,
277    HIGH
278  );
279
280  digitalWrite(
281    MOTOR_RIGHT_IN2_PIN,
282    LOW
283  );
284
285  analogWrite(
286    MOTOR_RIGHT_ENABLE_PIN,
287    speed
288  );
289}
290
291void turnRight(byte speed) {
292
293  digitalWrite(
294    MOTOR_RIGHT_IN1_PIN,
295    LOW
296  );
297
298  digitalWrite(
299    MOTOR_RIGHT_IN2_PIN,
300    LOW
301  );
302
303  analogWrite(
304    MOTOR_RIGHT_ENABLE_PIN,
305    0
306  );
307
308  digitalWrite(
309    MOTOR_LEFT_IN1_PIN,
310    HIGH
311  );
312
313  digitalWrite(
314    MOTOR_LEFT_IN2_PIN,
315    LOW
316  );
317
318  analogWrite(
319    MOTOR_LEFT_ENABLE_PIN,
320    speed
321  );
322}
323
324
325
326void stopMotors() {
327
328  digitalWrite(
329    MOTOR_LEFT_ENABLE_PIN,
330    LOW
331  );
332
333  digitalWrite(
334    MOTOR_RIGHT_ENABLE_PIN,
335    LOW
336  );
337
338  digitalWrite(
339    MOTOR_LEFT_IN1_PIN,
340    LOW
341  );
342
343  digitalWrite(
344    MOTOR_LEFT_IN2_PIN,
345    LOW
346  );
347
348  digitalWrite(
349    MOTOR_RIGHT_IN1_PIN,
350    LOW
351  );
352
353  digitalWrite(
354    MOTOR_RIGHT_IN2_PIN,
355    LOW
356  );
357}
358
359void setAllLeds(bool on) {
360
361  for (
362    byte i = 0;
363    i < LED_COUNT;
364    i++
365  ) {
366
367    digitalWrite(
368      LED_PINS[i],
369      on ? HIGH : LOW
370    );
371  }
372}
373
374void showPartyLeds(
375  bool alternatePattern
376) {
377
378  digitalWrite(
379    LED_PINS[0],
380    alternatePattern ? LOW : HIGH
381  );
382
383  digitalWrite(
384    LED_PINS[1],
385    alternatePattern ? HIGH : LOW
386  );
387
388  digitalWrite(
389    LED_PINS[2],
390    alternatePattern ? LOW : HIGH
391  );
392
393  digitalWrite(
394    LED_PINS[3],
395    alternatePattern ? HIGH : LOW
396  );
397}
398
399void playLoop(byte track) {
400
401  if (
402    !dfPlayerReady ||
403    (
404      activeAudioMode == AUDIO_LOOPING &&
405      activeAudioTrack == track
406    )
407  ) {
408
409    return;
410  }
411
412  dfPlayer.loop(track);
413
414  activeAudioMode =
415    AUDIO_LOOPING;
416
417  activeAudioTrack =
418    track;
419}
420
421void playOnce(byte track) {
422
423  Serial.print("playOnce(");
424  Serial.print(track);
425  Serial.println(")");
426
427  if (!dfPlayerReady) {
428
429    Serial.println(
430      "DFPlayer not ready"
431    );
432
433    return;
434  }
435
436  if (
437    activeAudioMode == AUDIO_ONCE &&
438    activeAudioTrack == track
439  ) {
440
441    Serial.println(
442      "Already playing this track"
443    );
444
445    return;
446  }
447
448  Serial.println(
449    "Sending play command"
450  );
451
452  dfPlayer.playMp3Folder(track);
453
454  activeAudioMode =
455    AUDIO_ONCE;
456
457  activeAudioTrack =
458    track;
459}
460
461void serviceDfPlayerEvents() {
462
463  if (
464    !dfPlayerReady ||
465    !dfPlayer.available()
466  ) {
467
468    return;
469  }
470
471  const uint8_t eventType =
472    dfPlayer.readType();
473
474  const int eventValue =
475    dfPlayer.read();
476
477  if (
478    eventType == DFPlayerPlayFinished &&
479    eventValue == TRACK_PARTY &&
480    robotState == PARTY
481  ) {
482
483    partyTrackFinished =
484      true;
485  }
486}
487
488unsigned int readDistance() {
489
490  digitalWrite(
491    TRIG_PIN,
492    LOW
493  );
494
495  delayMicroseconds(2);
496
497  digitalWrite(
498    TRIG_PIN,
499    HIGH
500  );
501
502  delayMicroseconds(10);
503
504  digitalWrite(
505    TRIG_PIN,
506    LOW
507  );
508
509  const unsigned long pulseDuration =
510    pulseIn(
511      ECHO_PIN,
512      HIGH,
513      ULTRASONIC_TIMEOUT_US
514    );
515
516  if (
517    pulseDuration == 0
518  ) {
519
520    return 0;
521  }
522
523  return (
524    unsigned int
525  )(
526    pulseDuration / 58UL
527  );
528}
529
530void addDistanceSample(
531  unsigned int distanceCm
532) {
533
534  if (
535    distanceCm == 0
536  ) {
537
538    return;
539  }
540
541  if (
542    distanceSampleTotal ==
543    DISTANCE_SAMPLE_COUNT
544  ) {
545
546    distanceSampleSum -=
547      distanceSamples[
548        distanceSampleIndex
549      ];
550
551  } else {
552
553    distanceSampleTotal++;
554  }
555
556  distanceSamples[
557    distanceSampleIndex
558  ] = distanceCm;
559
560  distanceSampleSum +=
561    distanceCm;
562
563  distanceSampleIndex =
564    (
565      distanceSampleIndex + 1
566    ) %
567    DISTANCE_SAMPLE_COUNT;
568
569  filteredDistanceCm =
570    distanceSampleSum /
571    distanceSampleTotal;
572}
573
574void updateUltrasonic() {
575
576  const unsigned long now =
577    millis();
578
579  if (
580    now - lastUltrasonicReadAt <
581    ULTRASONIC_INTERVAL_MS
582  ) {
583
584    return;
585  }
586
587  lastUltrasonicReadAt =
588    now;
589
590  const unsigned int measuredDistanceCm =
591    readDistance();
592
593  rawDistanceCm =
594    measuredDistanceCm;
595
596  if (
597    measuredDistanceCm == 0
598  ) {
599
600    return;
601  }
602
603  previousFilteredDistanceCm =
604    filteredDistanceCm;
605
606  addDistanceSample(
607    measuredDistanceCm
608  );
609}
610
611unsigned int getFreshDistance() {
612
613  const unsigned int distance =
614    readDistance();
615
616  rawDistanceCm =
617    distance;
618
619  if (
620    distance > 0
621  ) {
622
623    previousFilteredDistanceCm =
624      filteredDistanceCm;
625
626    addDistanceSample(
627      distance
628    );
629  }
630
631  return distance;
632}
633
634bool buttonWasPressed() {
635
636  const unsigned long now =
637    millis();
638
639  const bool rawState =
640    digitalRead(
641      BUTTON_PIN
642    );
643
644  if (
645    rawState !=
646    lastRawButtonState
647  ) {
648
649    lastRawButtonState =
650      rawState;
651
652    rawButtonChangedAt =
653      now;
654  }
655
656  if (
657    rawState !=
658    stableButtonState &&
659    now - rawButtonChangedAt >=
660      BUTTON_DEBOUNCE_MS
661  ) {
662
663    stableButtonState =
664      rawState;
665
666    return (
667      stableButtonState == LOW
668    );
669  }
670
671  return false;
672}
673
674void changeState(
675  RobotState newState
676) {
677
678  robotState =
679    newState;
680
681  stateStartedAt =
682    millis();
683
684  switch (
685    robotState
686  ) {
687
688    case NORMAL:
689
690      avoidanceStep =
691        AVOID_DRIVING;
692
693      personalityWiggleActive =
694        false;
695
696      normalPauseState =
697        PAUSE_NOT_ACTIVE;
698
699      nextPersonalityWiggleAt =
700        stateStartedAt +
701        random(
702          PERSONALITY_WIGGLE_MIN_INTERVAL_MS,
703          PERSONALITY_WIGGLE_MAX_INTERVAL_MS + 1
704        );
705
706      nextRandomPauseAt =
707        stateStartedAt +
708        random(
709          RANDOM_PAUSE_MIN_INTERVAL_MS,
710          RANDOM_PAUSE_MAX_INTERVAL_MS + 1
711        );
712
713      setAllLeds(
714        false
715      );
716
717      playLoop(
718        TRACK_NORMAL
719      );
720
721      driveForward(
722        DRIVE_SPEED
723      );
724
725      break;
726
727    case SCREAM:
728
729      stopMotors();
730
731      setAllLeds(true);
732
733      playOnce(
734        TRACK_SCREAM
735      );
736
737      screamTurnInitialized =
738        false;
739
740      screamLastWiggleAt =
741        millis();
742
743      screamWiggleLeft =
744        true;
745
746      break;
747
748    case PARTY:
749
750      stopMotors();
751
752      playOnce(
753        TRACK_PARTY
754      );
755
756      partyTrackFinished =
757        false;
758
759      partyLedsAlternate =
760        false;
761
762      lastLedChangeAt =
763        stateStartedAt;
764
765      showPartyLeds(
766        partyLedsAlternate
767      );
768
769      break;
770  }
771}
772
773void startObstacleAvoidance() {
774
775  avoidanceStep =
776    AVOID_STOPPING;
777
778  avoidanceStepStartedAt =
779    millis();
780
781  avoidanceTurnChunks =
782    0;
783
784  turnLeftSelected =
785    nextTurnLeft;
786
787  nextTurnLeft =
788    !nextTurnLeft;
789
790  normalPauseState =
791    PAUSE_NOT_ACTIVE;
792
793  personalityWiggleActive =
794    false;
795
796  stopMotors();
797}
798
799bool runRandomPause(
800  unsigned long now
801) {
802
803  if (
804    normalPauseState ==
805      PAUSE_NOT_ACTIVE &&
806    (long)(
807      now - nextRandomPauseAt
808    ) >= 0
809  ) {
810
811    normalPauseState =
812      PAUSE_ACTIVE;
813
814    randomPauseStartedAt =
815      now;
816
817    randomPauseDuration =
818      random(
819        RANDOM_PAUSE_MIN_DURATION_MS,
820        RANDOM_PAUSE_MAX_DURATION_MS + 1
821      );
822
823    stopMotors();
824
825  }
826
827
828  if (
829    normalPauseState ==
830    PAUSE_NOT_ACTIVE
831  ) {
832
833    return false;
834  }
835
836  if (
837    now - randomPauseStartedAt <
838    randomPauseDuration
839  ) {
840
841    stopMotors();
842
843    return true;
844  }
845
846  normalPauseState =
847    PAUSE_NOT_ACTIVE;
848
849  nextRandomPauseAt =
850    now +
851    random(
852      RANDOM_PAUSE_MIN_INTERVAL_MS,
853      RANDOM_PAUSE_MAX_INTERVAL_MS + 1
854    );
855
856  driveForward(
857    DRIVE_SPEED
858  );
859
860  return false;
861}
862
863bool runPersonalityWiggle(
864  unsigned long now
865) {
866
867  if (
868    !personalityWiggleActive &&
869    (long)(
870      now - nextPersonalityWiggleAt
871    ) >= 0
872  ) {
873
874    turnLeftSelected =
875      nextTurnLeft;
876
877    nextTurnLeft =
878      !nextTurnLeft;
879
880    personalityWiggleActive =
881      true;
882
883    personalityWiggleEndsAt =
884      now +
885      PERSONALITY_WIGGLE_DURATION_MS;
886
887    nextPersonalityWiggleAt =
888      now +
889      random(
890        PERSONALITY_WIGGLE_MIN_INTERVAL_MS,
891        PERSONALITY_WIGGLE_MAX_INTERVAL_MS + 1
892      );
893  }
894
895  if (
896    !personalityWiggleActive
897  ) {
898
899    return false;
900  }
901
902  if (
903    (long)(
904      now - personalityWiggleEndsAt
905    ) >= 0
906  ) {
907
908    personalityWiggleActive =
909      false;
910
911    driveForward(
912      DRIVE_SPEED
913    );
914
915    return false;
916  }
917
918  if (
919    turnLeftSelected
920  ) {
921
922    turnLeft(
923      TURN_SPEED
924    );
925
926  } else {
927
928    turnRight(
929      TURN_SPEED
930    );
931  }
932
933  return true;
934}
935
936void updateNormalState() {
937
938  const unsigned long now =
939    millis();
940
941  switch (
942    avoidanceStep
943  ) {
944
945    case AVOID_DRIVING:
946
947      if (
948        rawDistanceCm > 0 &&
949        rawDistanceCm <=
950          SCREAM_DISTANCE_CM &&
951        (long)(
952          now - surpriseIgnoreUntil
953        ) >= 0
954      ) {
955
956        changeState(
957          SCREAM
958        );
959
960        return;
961      }
962
963      if (
964        rawDistanceCm > 0 &&
965        rawDistanceCm <
966          WALL_DISTANCE_CM
967      ) {
968
969        startObstacleAvoidance();
970
971        return;
972      }
973
974      if (
975        runRandomPause(
976          now
977        )
978      ) {
979
980        return;
981      }
982
983      if (
984        runPersonalityWiggle(
985          now
986        )
987      ) {
988
989        return;
990      }
991
992      driveForward(
993        DRIVE_SPEED
994      );
995
996      break;
997
998    case AVOID_STOPPING:
999
1000      if (
1001        now -
1002        avoidanceStepStartedAt >=
1003        AVOID_STOP_DURATION_MS
1004      ) {
1005
1006        avoidanceStep =
1007          AVOID_BACKING_UP;
1008
1009        avoidanceStepStartedAt =
1010          now;
1011
1012        driveBackward(
1013          BACKUP_SPEED
1014        );
1015      }
1016
1017      break;
1018
1019    case AVOID_BACKING_UP:
1020
1021      if (
1022        now -
1023        avoidanceStepStartedAt >=
1024        AVOID_BACKUP_DURATION_MS
1025      ) {
1026
1027        avoidanceStep =
1028          AVOID_TURNING;
1029
1030        avoidanceStepStartedAt =
1031          now;
1032
1033        avoidanceTurnChunks =
1034          0;
1035
1036        if (
1037          turnLeftSelected
1038        ) {
1039
1040          turnLeft(
1041            TURN_SPEED
1042          );
1043
1044        } else {
1045
1046          turnRight(
1047            TURN_SPEED
1048          );
1049        }
1050      }
1051
1052      break;
1053
1054    case AVOID_TURNING:
1055
1056      if (
1057        now -
1058        avoidanceStepStartedAt >=
1059        AVOID_TURN_CHUNK_MS
1060      ) {
1061
1062        stopMotors();
1063
1064        avoidanceStep =
1065          AVOID_LOOKING;
1066
1067        avoidanceLookStartedAt =
1068          now;
1069      }
1070
1071      break;
1072
1073    case AVOID_LOOKING:
1074
1075      if (
1076        now -
1077        avoidanceLookStartedAt <
1078        AVOID_LOOK_DELAY_MS
1079      ) {
1080
1081        return;
1082      }
1083
1084      const unsigned int freshDistance =
1085        getFreshDistance();
1086
1087      if (
1088        freshDistance >=
1089        AVOID_SAFE_DISTANCE_CM
1090      ) {
1091
1092        avoidanceStep =
1093          AVOID_DRIVING;
1094
1095        surpriseIgnoreUntil =
1096          millis() +
1097          300;
1098
1099        driveForward(
1100          DRIVE_SPEED
1101        );
1102
1103        return;
1104      }
1105
1106      avoidanceTurnChunks++;
1107
1108      if (
1109        avoidanceTurnChunks >=
1110        AVOID_MAX_TURN_CHUNKS
1111      ) {
1112
1113        turnLeftSelected =
1114          !turnLeftSelected;
1115
1116        avoidanceTurnChunks =
1117          0;
1118      }
1119
1120      avoidanceStep =
1121        AVOID_TURNING;
1122
1123      avoidanceStepStartedAt =
1124        now;
1125
1126      if (
1127        turnLeftSelected
1128      ) {
1129
1130        turnLeft(
1131          TURN_SPEED
1132        );
1133
1134      } else {
1135
1136        turnRight(
1137          TURN_SPEED
1138        );
1139      }
1140
1141      break;
1142  }
1143}
1144
1145void updateScreamState() {
1146
1147  const unsigned long now =
1148    millis();
1149
1150  const unsigned long elapsed =
1151    now - stateStartedAt;
1152
1153  if (
1154    elapsed <
1155    SCREAM_PAUSE_MS
1156  ) {
1157
1158    stopMotors();
1159
1160    return;
1161  }
1162
1163  if (
1164    elapsed <
1165    SCREAM_PAUSE_MS +
1166    SCREAM_BACKUP_DURATION_MS
1167  ) {
1168
1169    if (
1170      now -
1171      screamLastWiggleAt >=
1172      SCREAM_WIGGLE_INTERVAL_MS
1173    ) {
1174
1175      screamLastWiggleAt =
1176        now;
1177
1178      screamWiggleLeft =
1179        !screamWiggleLeft;
1180    }
1181
1182    setMotorDirection(
1183      false,
1184      false
1185    );
1186
1187
1188    if (
1189      screamWiggleLeft
1190    ) {
1191
1192      analogWrite(
1193        MOTOR_LEFT_ENABLE_PIN,
1194        SCREAM_WIGGLE_SPEED
1195      );
1196
1197      analogWrite(
1198        MOTOR_RIGHT_ENABLE_PIN,
1199        BACKUP_SPEED
1200      );
1201
1202    } else {
1203
1204      analogWrite(
1205        MOTOR_LEFT_ENABLE_PIN,
1206        BACKUP_SPEED
1207      );
1208
1209      analogWrite(
1210        MOTOR_RIGHT_ENABLE_PIN,
1211        SCREAM_WIGGLE_SPEED
1212      );
1213    }
1214
1215    return;
1216  }
1217
1218  if (
1219    elapsed <
1220    SCREAM_PAUSE_MS +
1221    SCREAM_BACKUP_DURATION_MS +
1222    SCREAM_TURN_DURATION_MS
1223  ) {
1224
1225    if (
1226      !screamTurnInitialized
1227    ) {
1228
1229      turnLeftSelected =
1230        nextTurnLeft;
1231
1232      nextTurnLeft =
1233        !nextTurnLeft;
1234
1235      screamTurnInitialized =
1236        true;
1237    }
1238
1239    if (
1240      turnLeftSelected
1241    ) {
1242
1243      turnLeft(
1244        TURN_SPEED
1245      );
1246
1247    } else {
1248
1249      turnRight(
1250        TURN_SPEED
1251      );
1252    }
1253
1254    return;
1255  }
1256
1257  stopMotors();
1258
1259  surpriseIgnoreUntil =
1260    millis() +
1261    SURPRISE_COOLDOWN_MS;
1262
1263  changeState(
1264    NORMAL
1265  );
1266}
1267
1268void updatePartyState() {
1269  const unsigned long now = millis();
1270
1271  const unsigned long elapsed =
1272    now - stateStartedAt;
1273  if (elapsed < PARTY_DURATION_MS / 2) {
1274
1275    setMotorDirection(
1276      true,
1277      false
1278    );
1279
1280  } else {
1281
1282    setMotorDirection(
1283      false,
1284      true
1285    );
1286  }
1287
1288  analogWrite(
1289    MOTOR_LEFT_ENABLE_PIN,
1290    PARTY_SPIN_SPEED
1291  );
1292
1293  analogWrite(
1294    MOTOR_RIGHT_ENABLE_PIN,
1295    PARTY_SPIN_SPEED
1296  );
1297  if (
1298    now -
1299    lastLedChangeAt >=
1300    LED_BLINK_INTERVAL_MS
1301  ) {
1302
1303    lastLedChangeAt =
1304      now;
1305
1306    partyLedsAlternate =
1307      !partyLedsAlternate;
1308
1309    showPartyLeds(
1310      partyLedsAlternate
1311    );
1312  }
1313
1314  if (
1315    elapsed >=
1316    PARTY_DURATION_MS
1317  ) {
1318
1319    stopMotors();
1320
1321    setAllLeds(
1322      false
1323    );
1324
1325    changeState(
1326      NORMAL
1327    );
1328  }
1329}
1330
1331void setup() {
1332
1333  Serial.begin(
1334    115200
1335  );
1336
1337  pinMode(
1338    TRIG_PIN,
1339    OUTPUT
1340  );
1341
1342  pinMode(
1343    ECHO_PIN,
1344    INPUT
1345  );
1346
1347  digitalWrite(
1348    TRIG_PIN,
1349    LOW
1350  );
1351
1352  pinMode(
1353    BUTTON_PIN,
1354    INPUT_PULLUP
1355  );
1356
1357  pinMode(
1358    MOTOR_LEFT_ENABLE_PIN,
1359    OUTPUT
1360  );
1361
1362  pinMode(
1363    MOTOR_LEFT_IN1_PIN,
1364    OUTPUT
1365  );
1366
1367  pinMode(
1368    MOTOR_LEFT_IN2_PIN,
1369    OUTPUT
1370  );
1371
1372  pinMode(
1373    MOTOR_RIGHT_ENABLE_PIN,
1374    OUTPUT
1375  );
1376
1377  pinMode(
1378    MOTOR_RIGHT_IN1_PIN,
1379    OUTPUT
1380  );
1381
1382  pinMode(
1383    MOTOR_RIGHT_IN2_PIN,
1384    OUTPUT
1385  );
1386
1387  for (
1388    byte i = 0;
1389    i < LED_COUNT;
1390    i++
1391  ) {
1392
1393    pinMode(
1394      LED_PINS[i],
1395      OUTPUT
1396    );
1397  }
1398
1399  setAllLeds(
1400    false
1401  );
1402
1403  stopMotors();
1404
1405  randomSeed(
1406    analogRead(A5)
1407  );
1408
1409  dfPlayerSerial.begin(
1410    9600
1411  );
1412
1413  if (
1414    dfPlayer.begin(
1415      dfPlayerSerial,
1416      true,
1417      true
1418    )
1419  ) {
1420
1421    dfPlayerReady =
1422      true;
1423
1424    dfPlayer.volume(
1425      DFPLAYER_VOLUME
1426    );
1427
1428    Serial.println(
1429      "DFPlayer ready"
1430    );
1431
1432  } else {
1433
1434    Serial.println(
1435      "DFPlayer NOT detected"
1436    );
1437  }
1438
1439  changeState(
1440    NORMAL
1441  );
1442}
1443
1444void loop() {
1445
1446  serviceDfPlayerEvents();
1447
1448  if (
1449    buttonWasPressed() &&
1450    robotState != PARTY
1451  ) {
1452
1453    changeState(
1454      PARTY
1455    );
1456  }
1457
1458  if (
1459    robotState == NORMAL
1460  ) {
1461
1462    updateUltrasonic();
1463  }
1464
1465  switch (
1466    robotState
1467  ) {
1468
1469    case NORMAL:
1470      updateNormalState();
1471      break;
1472
1473
1474    case SCREAM:
1475      updateScreamState();
1476      break;
1477
1478
1479    case PARTY:
1480      updatePartyState();
1481      break;
1482  }
1483}

/*
Autonomous Party Mouse Droid

 Copyright (c) 2026 Chaos Theory
 youtube.com/@heychaostheory

 This project is an unofficial, non-commercial Star Wars fan project.
 Star Wars, Mouse Droid, Sabine Wren, and related intellectual property belong to
 their respective rights holders. This project is not affiliated with
 or endorsed by Lucasfilm Ltd., The Walt Disney Company, or any other
 Star Wars rights holder.

 The original source code in this file is licensed under the MIT License.
 See the LICENSE-MIT.txt file for the full license text. */

#include <SoftwareSerial.h>
#include <DFRobotDFPlayerMini.h>

const byte ECHO_PIN = 2;
const byte TRIG_PIN = 3;

const byte BUTTON_PIN = 4;

const byte MOTOR_LEFT_ENABLE_PIN = 5;
const byte MOTOR_LEFT_IN1_PIN = 6;
const byte MOTOR_LEFT_IN2_PIN = 7;

const byte MOTOR_RIGHT_IN1_PIN = 8;
const byte MOTOR_RIGHT_IN2_PIN = 9;
const byte MOTOR_RIGHT_ENABLE_PIN = 10;

const byte DFPLAYER_TX_PIN = 11;
const byte DFPLAYER_RX_PIN = 12;

const byte LED_PINS[] = {
  A0,
  A1,
  A2,
  A3
};

const byte LED_COUNT =
  sizeof(LED_PINS) / sizeof(LED_PINS[0]);
const byte DRIVE_SPEED = 180;
const byte TURN_SPEED = 200;
const byte BACKUP_SPEED = 180;

// obstacle avoidance distance
const unsigned int WALL_DISTANCE_CM = 40;

// turning clearance
const unsigned int AVOID_SAFE_DISTANCE_CM = 50;

// scream mode activation maximum distance
const unsigned int SCREAM_DISTANCE_CM = 25;

const unsigned long ULTRASONIC_INTERVAL_MS = 60;
const unsigned long ULTRASONIC_TIMEOUT_US = 25000UL;

const byte DISTANCE_SAMPLE_COUNT = 5;
const unsigned long BUTTON_DEBOUNCE_MS = 30;

const unsigned long AVOID_STOP_DURATION_MS = 120;
const unsigned long AVOID_BACKUP_DURATION_MS = 550;

const unsigned long AVOID_TURN_CHUNK_MS = 500;

const unsigned long AVOID_LOOK_DELAY_MS = 120;

const byte AVOID_MAX_TURN_CHUNKS = 6;

const unsigned long RANDOM_PAUSE_MIN_INTERVAL_MS = 3500;
const unsigned long RANDOM_PAUSE_MAX_INTERVAL_MS = 7500;

const unsigned long RANDOM_PAUSE_MIN_DURATION_MS = 250;
const unsigned long RANDOM_PAUSE_MAX_DURATION_MS = 650;

const unsigned long PERSONALITY_WIGGLE_MIN_INTERVAL_MS = 2500;
const unsigned long PERSONALITY_WIGGLE_MAX_INTERVAL_MS = 5500;
const unsigned long PERSONALITY_WIGGLE_DURATION_MS = 140;

const unsigned long SCREAM_PAUSE_MS = 150;

const unsigned long SCREAM_BACKUP_DURATION_MS = 5000;

const unsigned long SCREAM_TURN_DURATION_MS = 0;

const unsigned long SURPRISE_COOLDOWN_MS = 2000;

const unsigned long SCREAM_WIGGLE_INTERVAL_MS = 350;

const byte SCREAM_WIGGLE_SPEED = 85;

const unsigned long LED_BLINK_INTERVAL_MS = 1000;

const byte PARTY_SPIN_SPEED = 255;

// party mode duration in milliseconds
const unsigned long PARTY_DURATION_MS = 20000;

const byte TRACK_NORMAL = 1;
const byte TRACK_SCREAM = 2;
const byte TRACK_PARTY = 3;

const byte DFPLAYER_VOLUME = 30;

enum RobotState {
  NORMAL,
  SCREAM,
  PARTY
};

enum AvoidanceStep {
  AVOID_DRIVING,
  AVOID_STOPPING,
  AVOID_BACKING_UP,
  AVOID_TURNING,
  AVOID_LOOKING
};

enum NormalPauseState {
  PAUSE_NOT_ACTIVE,
  PAUSE_ACTIVE
};

RobotState robotState = NORMAL;

AvoidanceStep avoidanceStep =
  AVOID_DRIVING;

NormalPauseState normalPauseState =
  PAUSE_NOT_ACTIVE;

SoftwareSerial dfPlayerSerial(
  DFPLAYER_RX_PIN,
  DFPLAYER_TX_PIN
);

DFRobotDFPlayerMini dfPlayer;

bool dfPlayerReady = false;

unsigned long stateStartedAt = 0;
unsigned long avoidanceStepStartedAt = 0;
unsigned long avoidanceLookStartedAt = 0;
unsigned long surpriseIgnoreUntil = 0;
unsigned long lastUltrasonicReadAt = 0;
unsigned long lastLedChangeAt = 0;
unsigned long nextRandomPauseAt = 0;
unsigned long randomPauseStartedAt = 0;
unsigned long randomPauseDuration = 0;
unsigned long nextPersonalityWiggleAt = 0;
unsigned long personalityWiggleEndsAt = 0;

bool personalityWiggleActive = false;

byte avoidanceTurnChunks = 0;

bool turnLeftSelected = true;
bool nextTurnLeft = true;

unsigned long screamLastWiggleAt = 0;

bool screamWiggleLeft = true;
bool screamTurnInitialized = false;
bool partyLedsAlternate = false;
bool partyTrackFinished = false;

unsigned int rawDistanceCm = 0;
unsigned int distanceSamples[DISTANCE_SAMPLE_COUNT] = {
  0
};

byte distanceSampleIndex = 0;
byte distanceSampleTotal = 0;

unsigned long distanceSampleSum = 0;
unsigned int filteredDistanceCm = 0;
unsigned int previousFilteredDistanceCm = 0;

bool lastRawButtonState = HIGH;
bool stableButtonState = HIGH;

unsigned long rawButtonChangedAt = 0;

enum AudioMode {
  AUDIO_NONE,
  AUDIO_LOOPING,
  AUDIO_ONCE
};

AudioMode activeAudioMode = AUDIO_NONE;

byte activeAudioTrack = 0;

void setMotorDirection(
  bool leftForward,
  bool rightForward
) {

  digitalWrite(
    MOTOR_LEFT_IN1_PIN,
    leftForward ? HIGH : LOW
  );

  digitalWrite(
    MOTOR_LEFT_IN2_PIN,
    leftForward ? LOW : HIGH
  );

  digitalWrite(
    MOTOR_RIGHT_IN1_PIN,
    rightForward ? HIGH : LOW
  );

  digitalWrite(
    MOTOR_RIGHT_IN2_PIN,
    rightForward ? LOW : HIGH
  );
}

void driveForward(byte speed) {

  setMotorDirection(
    true,
    true
  );

  analogWrite(
    MOTOR_LEFT_ENABLE_PIN,
    speed
  );

  analogWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    speed
  );
}

void driveBackward(byte speed) {

  setMotorDirection(
    false,
    false
  );

  analogWrite(
    MOTOR_LEFT_ENABLE_PIN,
    speed
  );

  analogWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    speed
  );
}

void turnLeft(byte speed) {

  digitalWrite(
    MOTOR_LEFT_IN1_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_LEFT_IN2_PIN,
    LOW
  );

  analogWrite(
    MOTOR_LEFT_ENABLE_PIN,
    0
  );

  digitalWrite(
    MOTOR_RIGHT_IN1_PIN,
    HIGH
  );

  digitalWrite(
    MOTOR_RIGHT_IN2_PIN,
    LOW
  );

  analogWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    speed
  );
}

void turnRight(byte speed) {

  digitalWrite(
    MOTOR_RIGHT_IN1_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_RIGHT_IN2_PIN,
    LOW
  );

  analogWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    0
  );

  digitalWrite(
    MOTOR_LEFT_IN1_PIN,
    HIGH
  );

  digitalWrite(
    MOTOR_LEFT_IN2_PIN,
    LOW
  );

  analogWrite(
    MOTOR_LEFT_ENABLE_PIN,
    speed
  );
}



void stopMotors() {

  digitalWrite(
    MOTOR_LEFT_ENABLE_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_LEFT_IN1_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_LEFT_IN2_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_RIGHT_IN1_PIN,
    LOW
  );

  digitalWrite(
    MOTOR_RIGHT_IN2_PIN,
    LOW
  );
}

void setAllLeds(bool on) {

  for (
    byte i = 0;
    i < LED_COUNT;
    i++
  ) {

    digitalWrite(
      LED_PINS[i],
      on ? HIGH : LOW
    );
  }
}

void showPartyLeds(
  bool alternatePattern
) {

  digitalWrite(
    LED_PINS[0],
    alternatePattern ? LOW : HIGH
  );

  digitalWrite(
    LED_PINS[1],
    alternatePattern ? HIGH : LOW
  );

  digitalWrite(
    LED_PINS[2],
    alternatePattern ? LOW : HIGH
  );

  digitalWrite(
    LED_PINS[3],
    alternatePattern ? HIGH : LOW
  );
}

void playLoop(byte track) {

  if (
    !dfPlayerReady ||
    (
      activeAudioMode == AUDIO_LOOPING &&
      activeAudioTrack == track
    )
  ) {

    return;
  }

  dfPlayer.loop(track);

  activeAudioMode =
    AUDIO_LOOPING;

  activeAudioTrack =
    track;
}

void playOnce(byte track) {

  Serial.print("playOnce(");
  Serial.print(track);
  Serial.println(")");

  if (!dfPlayerReady) {

    Serial.println(
      "DFPlayer not ready"
    );

    return;
  }

  if (
    activeAudioMode == AUDIO_ONCE &&
    activeAudioTrack == track
  ) {

    Serial.println(
      "Already playing this track"
    );

    return;
  }

  Serial.println(
    "Sending play command"
  );

  dfPlayer.playMp3Folder(track);

  activeAudioMode =
    AUDIO_ONCE;

  activeAudioTrack =
    track;
}

void serviceDfPlayerEvents() {

  if (
    !dfPlayerReady ||
    !dfPlayer.available()
  ) {

    return;
  }

  const uint8_t eventType =
    dfPlayer.readType();

  const int eventValue =
    dfPlayer.read();

  if (
    eventType == DFPlayerPlayFinished &&
    eventValue == TRACK_PARTY &&
    robotState == PARTY
  ) {

    partyTrackFinished =
      true;
  }
}

unsigned int readDistance() {

  digitalWrite(
    TRIG_PIN,
    LOW
  );

  delayMicroseconds(2);

  digitalWrite(
    TRIG_PIN,
    HIGH
  );

  delayMicroseconds(10);

  digitalWrite(
    TRIG_PIN,
    LOW
  );

  const unsigned long pulseDuration =
    pulseIn(
      ECHO_PIN,
      HIGH,
      ULTRASONIC_TIMEOUT_US
    );

  if (
    pulseDuration == 0
  ) {

    return 0;
  }

  return (
    unsigned int
  )(
    pulseDuration / 58UL
  );
}

void addDistanceSample(
  unsigned int distanceCm
) {

  if (
    distanceCm == 0
  ) {

    return;
  }

  if (
    distanceSampleTotal ==
    DISTANCE_SAMPLE_COUNT
  ) {

    distanceSampleSum -=
      distanceSamples[
        distanceSampleIndex
      ];

  } else {

    distanceSampleTotal++;
  }

  distanceSamples[
    distanceSampleIndex
  ] = distanceCm;

  distanceSampleSum +=
    distanceCm;

  distanceSampleIndex =
    (
      distanceSampleIndex + 1
    ) %
    DISTANCE_SAMPLE_COUNT;

  filteredDistanceCm =
    distanceSampleSum /
    distanceSampleTotal;
}

void updateUltrasonic() {

  const unsigned long now =
    millis();

  if (
    now - lastUltrasonicReadAt <
    ULTRASONIC_INTERVAL_MS
  ) {

    return;
  }

  lastUltrasonicReadAt =
    now;

  const unsigned int measuredDistanceCm =
    readDistance();

  rawDistanceCm =
    measuredDistanceCm;

  if (
    measuredDistanceCm == 0
  ) {

    return;
  }

  previousFilteredDistanceCm =
    filteredDistanceCm;

  addDistanceSample(
    measuredDistanceCm
  );
}

unsigned int getFreshDistance() {

  const unsigned int distance =
    readDistance();

  rawDistanceCm =
    distance;

  if (
    distance > 0
  ) {

    previousFilteredDistanceCm =
      filteredDistanceCm;

    addDistanceSample(
      distance
    );
  }

  return distance;
}

bool buttonWasPressed() {

  const unsigned long now =
    millis();

  const bool rawState =
    digitalRead(
      BUTTON_PIN
    );

  if (
    rawState !=
    lastRawButtonState
  ) {

    lastRawButtonState =
      rawState;

    rawButtonChangedAt =
      now;
  }

  if (
    rawState !=
    stableButtonState &&
    now - rawButtonChangedAt >=
      BUTTON_DEBOUNCE_MS
  ) {

    stableButtonState =
      rawState;

    return (
      stableButtonState == LOW
    );
  }

  return false;
}

void changeState(
  RobotState newState
) {

  robotState =
    newState;

  stateStartedAt =
    millis();

  switch (
    robotState
  ) {

    case NORMAL:

      avoidanceStep =
        AVOID_DRIVING;

      personalityWiggleActive =
        false;

      normalPauseState =
        PAUSE_NOT_ACTIVE;

      nextPersonalityWiggleAt =
        stateStartedAt +
        random(
          PERSONALITY_WIGGLE_MIN_INTERVAL_MS,
          PERSONALITY_WIGGLE_MAX_INTERVAL_MS + 1
        );

      nextRandomPauseAt =
        stateStartedAt +
        random(
          RANDOM_PAUSE_MIN_INTERVAL_MS,
          RANDOM_PAUSE_MAX_INTERVAL_MS + 1
        );

      setAllLeds(
        false
      );

      playLoop(
        TRACK_NORMAL
      );

      driveForward(
        DRIVE_SPEED
      );

      break;

    case SCREAM:

      stopMotors();

      setAllLeds(true);

      playOnce(
        TRACK_SCREAM
      );

      screamTurnInitialized =
        false;

      screamLastWiggleAt =
        millis();

      screamWiggleLeft =
        true;

      break;

    case PARTY:

      stopMotors();

      playOnce(
        TRACK_PARTY
      );

      partyTrackFinished =
        false;

      partyLedsAlternate =
        false;

      lastLedChangeAt =
        stateStartedAt;

      showPartyLeds(
        partyLedsAlternate
      );

      break;
  }
}

void startObstacleAvoidance() {

  avoidanceStep =
    AVOID_STOPPING;

  avoidanceStepStartedAt =
    millis();

  avoidanceTurnChunks =
    0;

  turnLeftSelected =
    nextTurnLeft;

  nextTurnLeft =
    !nextTurnLeft;

  normalPauseState =
    PAUSE_NOT_ACTIVE;

  personalityWiggleActive =
    false;

  stopMotors();
}

bool runRandomPause(
  unsigned long now
) {

  if (
    normalPauseState ==
      PAUSE_NOT_ACTIVE &&
    (long)(
      now - nextRandomPauseAt
    ) >= 0
  ) {

    normalPauseState =
      PAUSE_ACTIVE;

    randomPauseStartedAt =
      now;

    randomPauseDuration =
      random(
        RANDOM_PAUSE_MIN_DURATION_MS,
        RANDOM_PAUSE_MAX_DURATION_MS + 1
      );

    stopMotors();

  }


  if (
    normalPauseState ==
    PAUSE_NOT_ACTIVE
  ) {

    return false;
  }

  if (
    now - randomPauseStartedAt <
    randomPauseDuration
  ) {

    stopMotors();

    return true;
  }

  normalPauseState =
    PAUSE_NOT_ACTIVE;

  nextRandomPauseAt =
    now +
    random(
      RANDOM_PAUSE_MIN_INTERVAL_MS,
      RANDOM_PAUSE_MAX_INTERVAL_MS + 1
    );

  driveForward(
    DRIVE_SPEED
  );

  return false;
}

bool runPersonalityWiggle(
  unsigned long now
) {

  if (
    !personalityWiggleActive &&
    (long)(
      now - nextPersonalityWiggleAt
    ) >= 0
  ) {

    turnLeftSelected =
      nextTurnLeft;

    nextTurnLeft =
      !nextTurnLeft;

    personalityWiggleActive =
      true;

    personalityWiggleEndsAt =
      now +
      PERSONALITY_WIGGLE_DURATION_MS;

    nextPersonalityWiggleAt =
      now +
      random(
        PERSONALITY_WIGGLE_MIN_INTERVAL_MS,
        PERSONALITY_WIGGLE_MAX_INTERVAL_MS + 1
      );
  }

  if (
    !personalityWiggleActive
  ) {

    return false;
  }

  if (
    (long)(
      now - personalityWiggleEndsAt
    ) >= 0
  ) {

    personalityWiggleActive =
      false;

    driveForward(
      DRIVE_SPEED
    );

    return false;
  }

  if (
    turnLeftSelected
  ) {

    turnLeft(
      TURN_SPEED
    );

  } else {

    turnRight(
      TURN_SPEED
    );
  }

  return true;
}

void updateNormalState() {

  const unsigned long now =
    millis();

  switch (
    avoidanceStep
  ) {

    case AVOID_DRIVING:

      if (
        rawDistanceCm > 0 &&
        rawDistanceCm <=
          SCREAM_DISTANCE_CM &&
        (long)(
          now - surpriseIgnoreUntil
        ) >= 0
      ) {

        changeState(
          SCREAM
        );

        return;
      }

      if (
        rawDistanceCm > 0 &&
        rawDistanceCm <
          WALL_DISTANCE_CM
      ) {

        startObstacleAvoidance();

        return;
      }

      if (
        runRandomPause(
          now
        )
      ) {

        return;
      }

      if (
        runPersonalityWiggle(
          now
        )
      ) {

        return;
      }

      driveForward(
        DRIVE_SPEED
      );

      break;

    case AVOID_STOPPING:

      if (
        now -
        avoidanceStepStartedAt >=
        AVOID_STOP_DURATION_MS
      ) {

        avoidanceStep =
          AVOID_BACKING_UP;

        avoidanceStepStartedAt =
          now;

        driveBackward(
          BACKUP_SPEED
        );
      }

      break;

    case AVOID_BACKING_UP:

      if (
        now -
        avoidanceStepStartedAt >=
        AVOID_BACKUP_DURATION_MS
      ) {

        avoidanceStep =
          AVOID_TURNING;

        avoidanceStepStartedAt =
          now;

        avoidanceTurnChunks =
          0;

        if (
          turnLeftSelected
        ) {

          turnLeft(
            TURN_SPEED
          );

        } else {

          turnRight(
            TURN_SPEED
          );
        }
      }

      break;

    case AVOID_TURNING:

      if (
        now -
        avoidanceStepStartedAt >=
        AVOID_TURN_CHUNK_MS
      ) {

        stopMotors();

        avoidanceStep =
          AVOID_LOOKING;

        avoidanceLookStartedAt =
          now;
      }

      break;

    case AVOID_LOOKING:

      if (
        now -
        avoidanceLookStartedAt <
        AVOID_LOOK_DELAY_MS
      ) {

        return;
      }

      const unsigned int freshDistance =
        getFreshDistance();

      if (
        freshDistance >=
        AVOID_SAFE_DISTANCE_CM
      ) {

        avoidanceStep =
          AVOID_DRIVING;

        surpriseIgnoreUntil =
          millis() +
          300;

        driveForward(
          DRIVE_SPEED
        );

        return;
      }

      avoidanceTurnChunks++;

      if (
        avoidanceTurnChunks >=
        AVOID_MAX_TURN_CHUNKS
      ) {

        turnLeftSelected =
          !turnLeftSelected;

        avoidanceTurnChunks =
          0;
      }

      avoidanceStep =
        AVOID_TURNING;

      avoidanceStepStartedAt =
        now;

      if (
        turnLeftSelected
      ) {

        turnLeft(
          TURN_SPEED
        );

      } else {

        turnRight(
          TURN_SPEED
        );
      }

      break;
  }
}

void updateScreamState() {

  const unsigned long now =
    millis();

  const unsigned long elapsed =
    now - stateStartedAt;

  if (
    elapsed <
    SCREAM_PAUSE_MS
  ) {

    stopMotors();

    return;
  }

  if (
    elapsed <
    SCREAM_PAUSE_MS +
    SCREAM_BACKUP_DURATION_MS
  ) {

    if (
      now -
      screamLastWiggleAt >=
      SCREAM_WIGGLE_INTERVAL_MS
    ) {

      screamLastWiggleAt =
        now;

      screamWiggleLeft =
        !screamWiggleLeft;
    }

    setMotorDirection(
      false,
      false
    );


    if (
      screamWiggleLeft
    ) {

      analogWrite(
        MOTOR_LEFT_ENABLE_PIN,
        SCREAM_WIGGLE_SPEED
      );

      analogWrite(
        MOTOR_RIGHT_ENABLE_PIN,
        BACKUP_SPEED
      );

    } else {

      analogWrite(
        MOTOR_LEFT_ENABLE_PIN,
        BACKUP_SPEED
      );

      analogWrite(
        MOTOR_RIGHT_ENABLE_PIN,
        SCREAM_WIGGLE_SPEED
      );
    }

    return;
  }

  if (
    elapsed <
    SCREAM_PAUSE_MS +
    SCREAM_BACKUP_DURATION_MS +
    SCREAM_TURN_DURATION_MS
  ) {

    if (
      !screamTurnInitialized
    ) {

      turnLeftSelected =
        nextTurnLeft;

      nextTurnLeft =
        !nextTurnLeft;

      screamTurnInitialized =
        true;
    }

    if (
      turnLeftSelected
    ) {

      turnLeft(
        TURN_SPEED
      );

    } else {

      turnRight(
        TURN_SPEED
      );
    }

    return;
  }

  stopMotors();

  surpriseIgnoreUntil =
    millis() +
    SURPRISE_COOLDOWN_MS;

  changeState(
    NORMAL
  );
}

void updatePartyState() {
  const unsigned long now = millis();

  const unsigned long elapsed =
    now - stateStartedAt;
  if (elapsed < PARTY_DURATION_MS / 2) {

    setMotorDirection(
      true,
      false
    );

  } else {

    setMotorDirection(
      false,
      true
    );
  }

  analogWrite(
    MOTOR_LEFT_ENABLE_PIN,
    PARTY_SPIN_SPEED
  );

  analogWrite(
    MOTOR_RIGHT_ENABLE_PIN,
    PARTY_SPIN_SPEED
  );
  if (
    now -
    lastLedChangeAt >=
    LED_BLINK_INTERVAL_MS
  ) {

    lastLedChangeAt =
      now;

    partyLedsAlternate =
      !partyLedsAlternate;

    showPartyLeds(
      partyLedsAlternate
    );
  }

  if (
    elapsed >=
    PARTY_DURATION_MS
  ) {

    stopMotors();

    setAllLeds(
      false
    );

    changeState(
      NORMAL
    );
  }
}

void setup() {

  Serial.begin(
    115200
  );

  pinMode(
    TRIG_PIN,
    OUTPUT
  );

  pinMode(
    ECHO_PIN,
    INPUT
  );

  digitalWrite(
    TRIG_PIN,
    LOW
  );

  pinMode(
    BUTTON_PIN,
    INPUT_PULLUP
  );

  pinMode(
    MOTOR_LEFT_ENABLE_PIN,
    OUTPUT
  );

  pinMode(
    MOTOR_LEFT_IN1_PIN,
    OUTPUT
  );

  pinMode(
    MOTOR_LEFT_IN2_PIN,
    OUTPUT
  );

  pinMode(
    MOTOR_RIGHT_ENABLE_PIN,
    OUTPUT
  );

  pinMode(
    MOTOR_RIGHT_IN1_PIN,
    OUTPUT
  );

  pinMode(
    MOTOR_RIGHT_IN2_PIN,
    OUTPUT
  );

  for (
    byte i = 0;
    i < LED_COUNT;
    i++
  ) {

    pinMode(
      LED_PINS[i],
      OUTPUT
    );
  }

  setAllLeds(
    false
  );

  stopMotors();

  randomSeed(
    analogRead(A5)
  );

  dfPlayerSerial.begin(
    9600
  );

  if (
    dfPlayer.begin(
      dfPlayerSerial,
      true,
      true
    )
  ) {

    dfPlayerReady =
      true;

    dfPlayer.volume(
      DFPLAYER_VOLUME
    );

    Serial.println(
      "DFPlayer ready"
    );

  } else {

    Serial.println(
      "DFPlayer NOT detected"
    );
  }

  changeState(
    NORMAL
  );
}

void loop() {

  serviceDfPlayerEvents();

  if (
    buttonWasPressed() &&
    robotState != PARTY
  ) {

    changeState(
      PARTY
    );
  }

  if (
    robotState == NORMAL
  ) {

    updateUltrasonic();
  }

  switch (
    robotState
  ) {

    case NORMAL:
      updateNormalState();
      break;


    case SCREAM:
      updateScreamState();
      break;


    case PARTY:
      updatePartyState();
      break;
  }
}

Comments

Only logged in users can leave comments

heychaostheory

0 Followers

•

0 Projects

Intro
